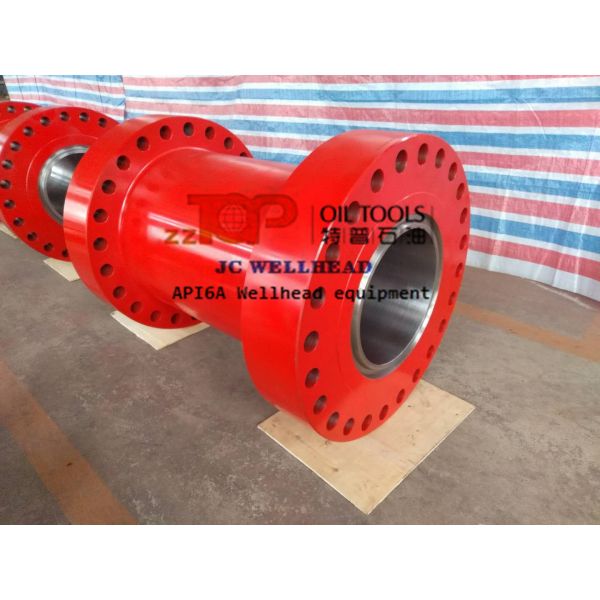

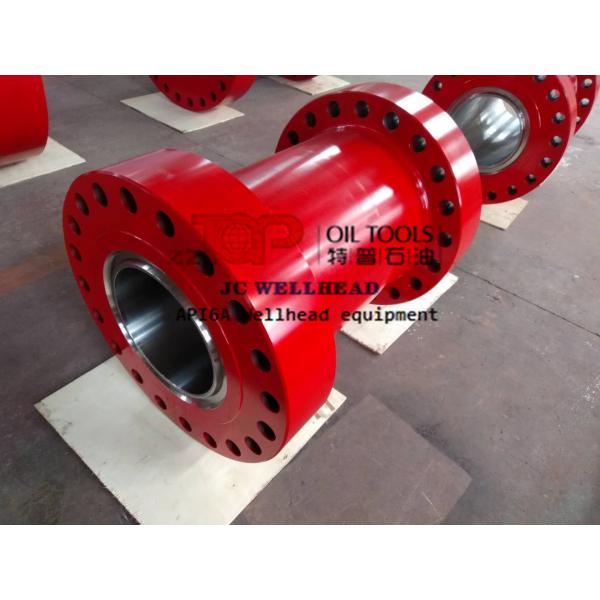

The wellhead riser spool is a kind of Flanged Spool Adapter used in wellhead equipment. The riser spool is the wellhead sections for suspension of tubular members which have no provision for sealing of tubular members and used for extension in the oilfield well flow control equipment and choke & kill manifold. The spacer spool has end flange connectors in the same size and same working pressure, The spacer spool is made of integral alloy steel forging in accordance with API 6A specification.The spacer spool is available in different length as per the customers' requirement. And it is easy to install the spacer spool on the wellhead
Specification of the 11" -10k x 11" -10k riser spool
| No. | P.N. | Description | Qty | Unit |
| 1 | | Riser Spool-11" 10K x 11" 10K, 3meters in Length, SS316 cladded Ring grooves,Material AISI4130 Integral Forging, Working Pressure 10000psi, Testing Pressure:15000psi, PR1,PSL3, Material CLASS:EE, Bore Diameter: 11"(280mm), Est. net weight:2625kgs, Est. Gross Weight:2650kgs, Packing: Fixed on Steel shelf base(Exclude Ring gakset and Bolts), As per API6A Standard | 1 | ea |
| 2 | | Blind Flange 11" 10K, Material: AISI4130 Integral Forging, SS316 Cladded ring grooves, Working pressure 10000psi, PR1,PSL2, Material class:EE, Est. net weight:340kgs, Est. Gross weight:355kgs, Packing: Plywood carton(Exclude Ring gasket and Bolts), as per API6A Standard | 1 | ea |
| 3 | | Bolts with nuts(One bolt with 2 nuts as one set), 1 3/4"-8UN, Length:382mm, Bolt material:AISI4140,Nut material:AISI4135, 6kg/set. | 16 | set |
| 4 | | Ring gasket BX158, Material SS316 | 2 | ea |
About JC Wellhead
Jingcheng Petroleum Machinery Manufacturing Co.,Ltd was established in 2008, we are specialized in design and manufacturing of the oilfield wellhead equipment. We - YCJC are a registered supplier for CNPC, GWDC, CCDC in China.
Product Scope
*BOP : Taper Rubber Annular BOP, Spherical rubber Annular BOP, Single Ram BOP, Double Ram BOP
* Wellhead Equipment: X-mas tree, casing head, casing hanger, tubing head, tubing hanger, casing spool, tubing spool, API Clamp, API Clamp Hub
* Wellhead valve: Gate valve, Choke valve, Check valve, Mud valve, and valve parts
* Wellhead adapter: Double studded adapter flange, spacer spool, riser spool, drilling spool, weldneck flange, union flange adapter
* Other wellhead equipment parts: Hammer union, Elbow, swivel joint, block cross, Block Tee,
* Oil well manifold: choke manifold, kill manifold, testing manifold
Welcome to contact us for more information!
